DRVEGRD 169 4D/UHD Corner Radar

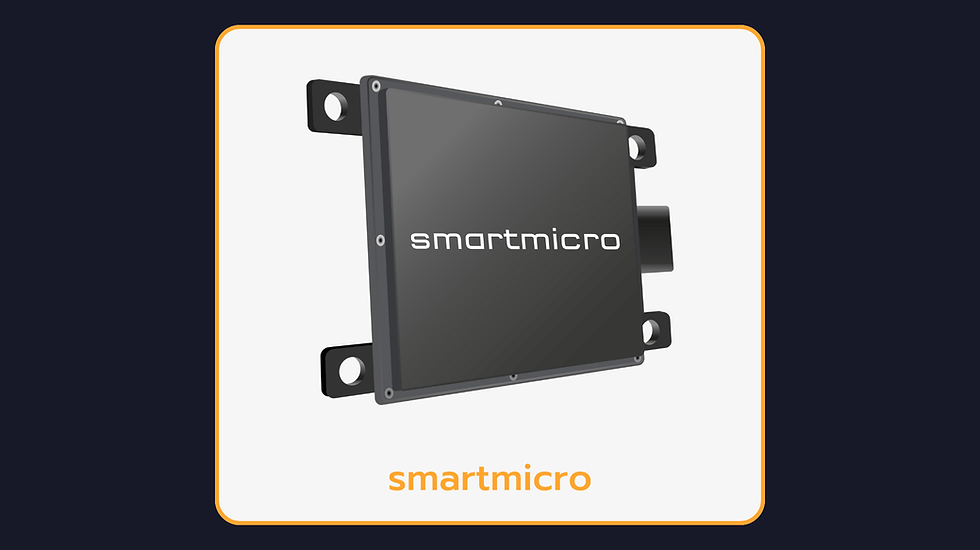

4D/UHD Corner Automotive Radar Sensor

The DRVEGRD 169 radar comes with four operation modes (long-, medium-, short- , and ultra-short-range), detecting objects with a range interval of 0.1 to 130 meters. The sensor covers a 140° wide field of view horizontally and 28° in elevation.

Featuring wide azimuth field of view and operation scan modes, the sensor accommodates a wide operational spectrum — from slow-moving autonomous robots to conventional vehicles.

  •  Performance:

    Performance Long-Range Mode Medium-Range Mode Short-Range Mode Ultra-Short Range Mode
    Operating Frequency 77...81 GHz 3 center frequencies 77...81 GHz 3 center frequencies 77...81 GHz 3 center frequencies 77...81 GHz 3 center frequencies
    Detection Range Passenger Car 95 m / 311.68 ft 55 m / 180.45 ft 19 m / 62.34 ft 9.5 m / 31.17 ft
    Detection Range Min...Max 1.3...130 m / 4.27...426.5 ft 0.6...56 m / 1.97...183.73 ft 0.2...19 m / 0.66...62.34 ft 0.1...9.5 m / 0.33...31.71 ft
    Range Separation ≤ 1.3 m / ≤ 4.27 ft ≤ 0.6 m / ≤ 1.97 ft ≤ 0.3 m / ≤ 0.98 ft ≤ 0.15 m / ≤ 0.49 ft
    Range Accuracy < 0.67 m / < 2.2 ft < 0.3 m / < 0.98 ft < 0.1 m / < 0.33 ft < 0.05 m / < 0.16 ft
    Speed Min...Max -340...+140 km/h / -211.3...+87 mph -340...+140 km/h / -211.3...+87 mph -340...+140 km/h / -211.3...+87 mph -60...60 km/h / -37.3...+37.3 mph
    Speed Separation 0.15 m/s 0.3 m/s 0.3 m/s 0.3 m/s
    Speed Accuracy < 0.075 m/s < 0.15 m/s < 0.15 m/s < 0.15 m/s
    Field of View Azimuth -65…+65° -65…+65° -65…+65° -70…+70°
    Field of View Elevation -7.5…+7.5° -7.5…+7.5° -7.5…+7.5° -14…+14°
    Angle Accuracy Azimuth ≤ 0.5° ≤ 0.5° ≤ 0.5° ≤ 0.5°
    Angle Accuracy Elevation ≤ 0.5° ≤ 0.5° ≤ 0.5° ≤ 0.5°



     Mechanical:

    Weight: < 186 g
    Dimensions: 79 x 97 x 22.45 mm



     General:

    Operating Voltage / Power Supply: 7...32 V / < 4 W
    Operating Temperature: -40...+85°C
    Interfaces: Ethernet 100Mbit (2-wire); Ethernet 1Gbit (2-wire); 2xCAN FD 5Mbit/s
    Connector: TE 1411001-1 series
    IP: IP67
