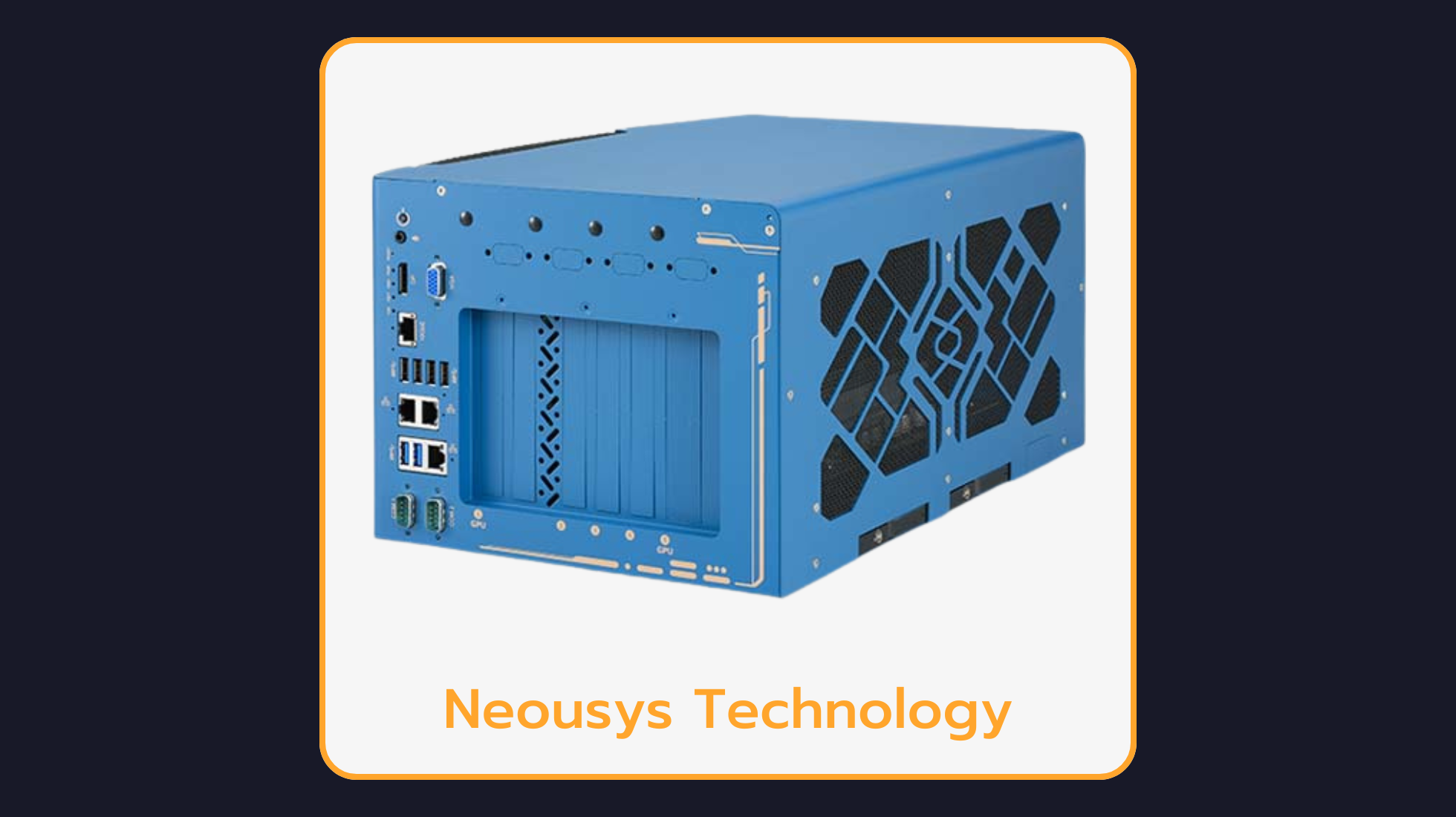

Nuvo-10208GC Series: NVIDIA® RTX™ Industrial Edge AI Computer

Name: Nuvo-10208GC Series: NVIDIA® RTX™ Industrial Edge AI Computer
Brand: Neousys Technology

Supporting Dual 350W NVIDIA® RTX™ GPU, Intel® 14th/13th/12th-Gen Core™ CPU with Additional PCIe Slots

Neousys Nuvo-10208GC Series is an industrial-grade Edge AI platform engineered to support dual 350W NVIDIA® RTX GPUs and Intel® 13th/12th-Gen Core™ processors. With up to 97 TFLOPS of FP32 GPU performance, it excels in autonomous driving, vision inspection, and surveillance. Designed for harsh environments, it features innovative GPU locking brackets, wide-temperature operation, and extensive I/O, making it ideal for demanding AI applications.

First file

Second file

Third file

System Core:

Processor

Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP):

Intel® Core™ i9-13900E/ i9-13900TE
Intel® Core™ i7-13700E/ i7-13700TE
Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
Intel® Core™ i3-13100E/ i3-13100TE

Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP):

Intel® Core™ i9-12900E/ i9-12900TE
Intel® Core™ i7-12700E/ i7-12700TE
Intel® Core™ i5-12500E/ i5-12500TE
Intel® Core™ i3-12100E/ i3-12100TE

Graphics

Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU), supporting dual 40 series/ RTXA4000, A5000, A6000, 6000 Ada.

Memory

Up to 64GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots)

I/O Interface:

Ethernet	2x 2.5G Ethernet and 1x Gigabit Ethernet
10G Ethernet (optional)	1x 10GBASE-T port , supporting NBASE-T (5G/ 2.5G) and 1000BASE-T (Optional)
USB	6x USB 3.2 Gen2x1 (10 Gbps) ports 1x USB 2.0 ports (internal for dongle use)
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)
Video Port(Integrated Graphics)	1x VGA connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface:

SATA HDD	2x hot-swappable HDD trays for 2.5" HDD/ SSD installation (support RAID 0/ 1)
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD Optional 1x M.2 2280 M key tray (PCIe Gen4 x4) for NVMe SSD

Expansion Bus:

PCI Express	2x PCIe x16 slot@Gen4, 8-lanes 3x PCIe x8 slot@Gen3, 4-lanes
mini-PCIe	2x full-size mini PCI Express sockets with internal SIM sockets
M.2	1x M.2 2242/3052 B key socket with internal SIM sockets

Mechanical:

Dimension	268 mm (W) x 400 mm (D) x 196 mm (H)
Weight	6.5 Kg

Environmental:

Operating Temperature	With 35W CPU and dual NVIDIA® 350W GPU -25°C to 60°C with 65W CPU and dual NVIDIA® 350W GPU -25°C ~ 60°C (with optional fan kit) -25°C ~ 50°C (without optional fan kit)
