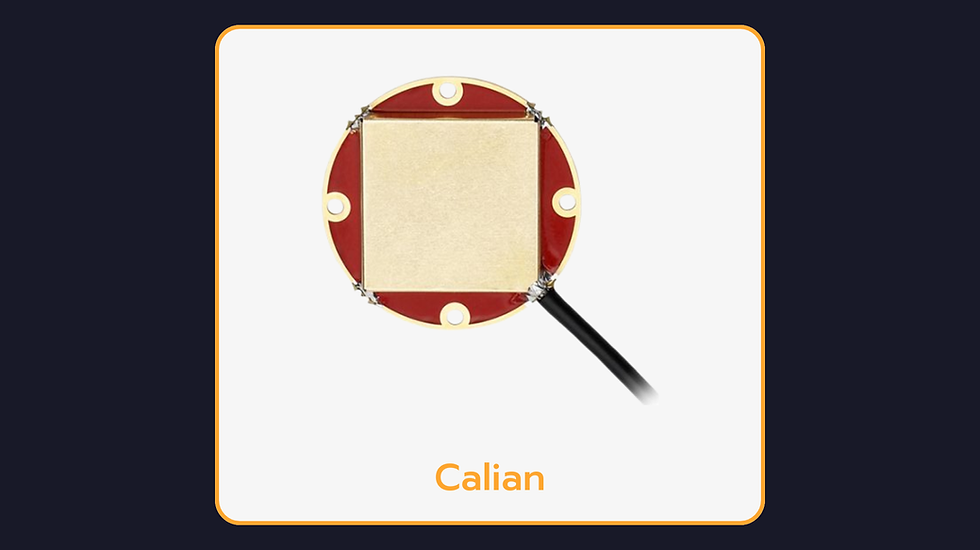

TW1322 Embedded Single-Band GNSS Antenna (Pre-Filtered)

Name: TW1322 Embedded Single-Band GNSS Antenna (Pre-Filtered)
Brand: Calian

Compact Antenna for Precision OEM Applications

Calian TW1322 Embedded Single-Band GNSS Antenna is a high-performance antenna designed for precise GPS-L1 and GLONASS-G1 signal reception. Featuring a wide 1 dB bandwidth and pre-filtered low-noise amplification, it ensures excellent signal quality by rejecting out-of-band interference. Ideal for OEM applications in agriculture, mining, and fleet management, TW1322 offers reliable performance with low power consumption in a compact form factor.

Datasheet

Download Product Specs

GNSS Coverage:

GPS / QZSS L1

GLONASS G1

Galileo -

BeiDou -

IRNSS / NavIC -

QZSS -

L-Band Services (1525 MHz - 1559 MHZ) -

Low Noise Amplifier (LNA):

Architecture Pre-filtered

Gain 28 dB min.

Noise Figure 3.5 dB typ.

Supply Voltage Range 2.5 to 16 VDC nominal, up to 50mV p-p ripple

Supply Current 9 mA typ.

Mechanicals:

Size
35 mm (dia.) x 7.7 mm

Weight 17.5 g

Radome -

Mount Adhesive | 4 ⋅ M2 screws

Available Connectors Refer to Ordering Guide
Great multipath rejection

Increase system accuracy

Excellent signal to noise ratio

Great out of band signal rejection

Compact form factor

RoHS compliant

GPS / QZSS	L1
GLONASS	G1
Galileo	-
BeiDou	-
IRNSS / NavIC	-
QZSS	-
L-Band Services (1525 MHz - 1559 MHZ)	-

Architecture	Pre-filtered
Gain	28 dB min.
Noise Figure	3.5 dB typ.
Supply Voltage Range	2.5 to 16 VDC nominal, up to 50mV p-p ripple
Supply Current	9 mA typ.

Size	35 mm (dia.) x 7.7 mm
Weight	17.5 g
Radome	-
Mount	Adhesive \| 4 ⋅ M2 screws
Available Connectors	Refer to Ordering Guide
