TW165 1-to-4 Port Smart Power GNSS Signal Splitter (10dB Gain)

Name: TW165 1-to-4 Port Smart Power GNSS Signal Splitter (10dB Gain)
Brand: Calian

Smart Power Splitter for Fault-Tolerant Performance in Critical Systems

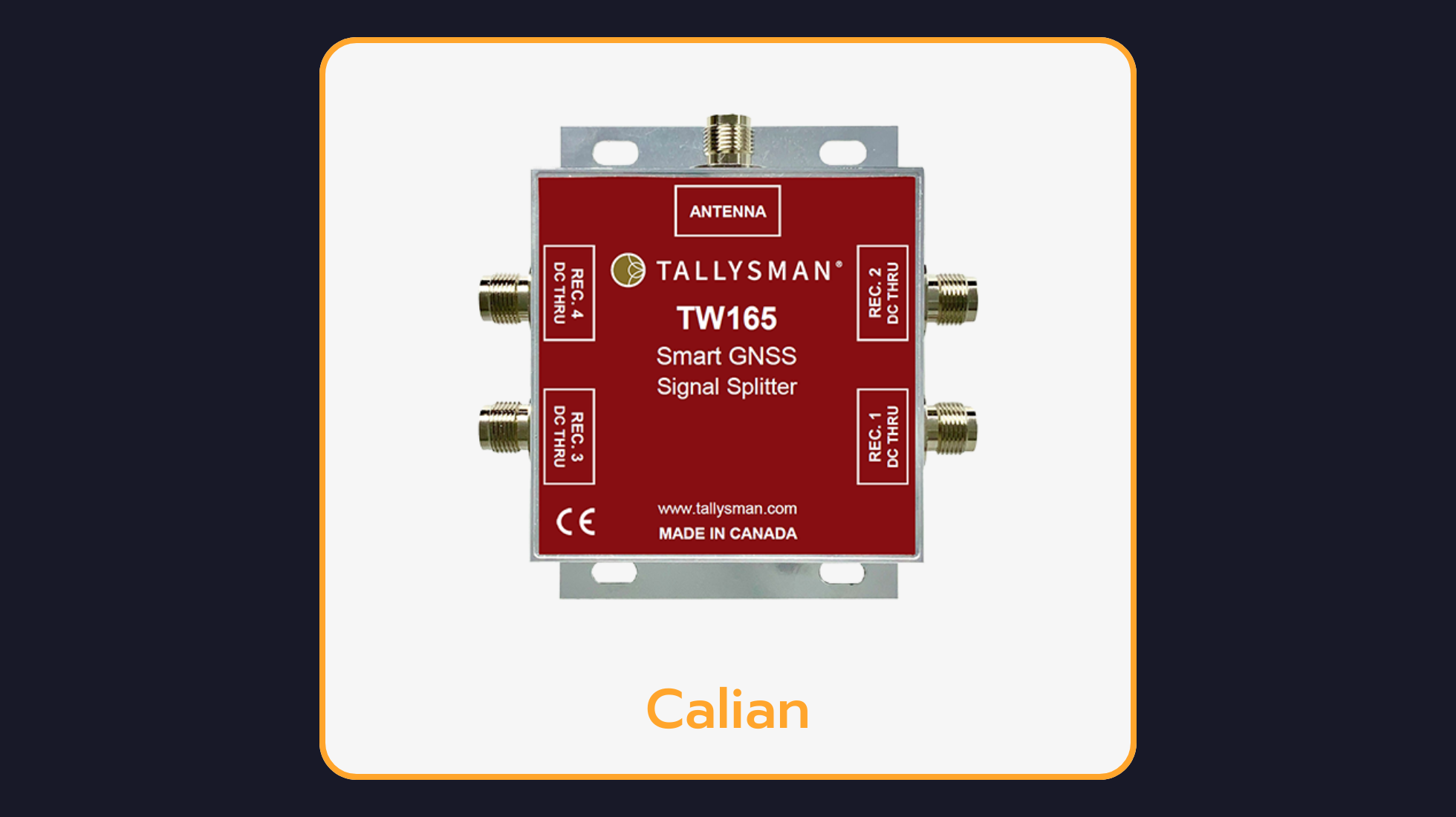

Calian TW165 Signal Splitter is a professional-grade 1-to-4 port GNSS signal splitter designed to distribute full GNSS spectrum signals to up to four receivers. With 10 dB gain, it compensates for signal-splitting loss, ensuring high-performance GNSS reception. Featuring smart power switching for continuous operation, TW165 is housed in a rugged, IP67-compliant military-grade aluminum enclosure, making it ideal for safety-critical, timing, and infrastructure applications in harsh environments.

Datasheet

Download Product Specs

Electrical:

Parameter	Conditions / Description	Minimum	Typical	Maximum	Units
Frequency Range	Bandwidth supported	1100	-	1700	MHz
Gain	Measured within range: -40 °C to 85 °C	9.0	10.0	11.0	dB
Noise Figure	All Receiver Ports	-	1.7	2.0	dB
Output Isolation	-	22.0	-	-	dB
Input/Output SWR	-	-	1.3:1 \| 1.1:1	1.5:1 \| 1.2:1	Ratio
Input Gain Compression Point (P1dB)	Gain = 0 dB	-20.0	-17.0	-14.0	dBm
3rd Order Intercept (IIP3)	Gain = 0 dB	-10.0	-7.0	-4.0	dBm
RF Input (Damage Threshold)	Maximum RF Input without damage	-	-	5.0	dB
Amplitude Balance	Between Ports	-	0.1	0.5	dB
Phase Balance	Between Ports	-	2.0	5.0	Degrees
DC In	DC input on any port	3.3	-	12.5	VDC
Receiver Over-voltage	-	12.7	14.9	16.9	VDC
Receiver Under-voltage	-	2.3	2.5	2.8	VDC
Splitter Current	Current consumed by splitter	-	15.0	25.0	mA
Antenna Through Current	Maximum current provided to the antenna	-	-	230.0	mA

Mechanical:

Size	117.0 mm (l.) x 111.6 mm (w.) x 38.0 mm (h.)
Weight	405 g (type-N connectors) or 280 g (TNC connectors)
Connectors	5x TNC (female) or 5x type-N (female)
Enclosure	military-grade corrosion-protected aluminum (6061-T6)

Allows up to four GNSS receivers to share a single antenna

Fits in-line with antenna cable

Robust design

Suitable for harsh environments
