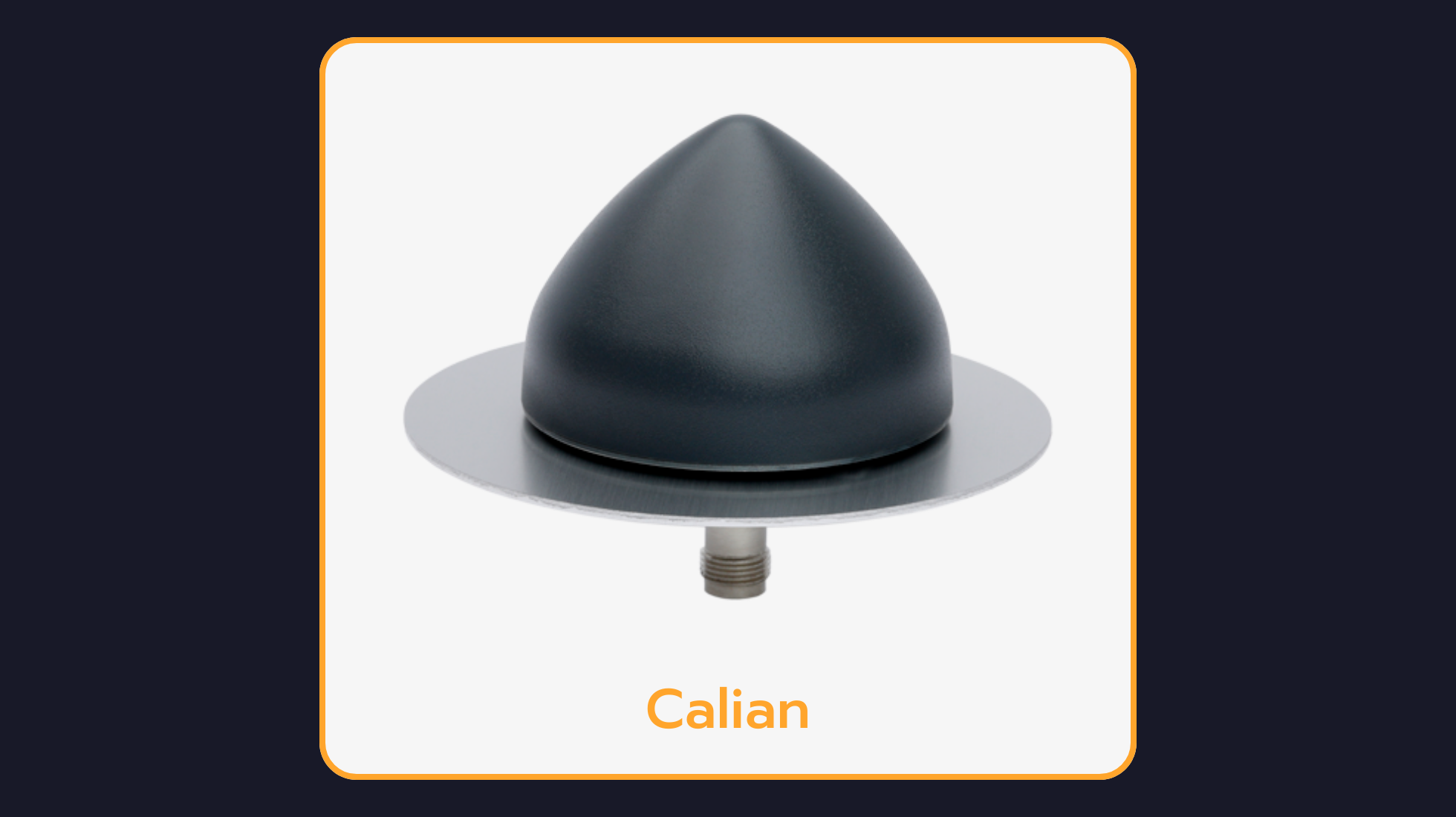

Leo Store - Calian - TW3752 Single-Band GNSS Antenna 1

TW3752 Single-Band GNSS Antenna

TW3752 High Gain / High Rejection GPS + GLONASS + Galileo + BeiDou Timing Antenna

The TW3752 employs Calian’s unique Accutenna® technology, covering GPS/QZSS L1, GLONASS G1, Galileo E1, BeiDou B1, as well as SBAS (WAAS/EGNOS/MSAS).

  • GNSS Coverage:

    GPS / QZSS L1
    GLONASS G1
    Galileo E1
    BeiDou B1
    IRNSS / NavIC -
    QZSS -
    L-Band Services (1525 MHz - 1559 MHZ) -



    Antenna:

    Architecture Dual Feed Patch, Quadrature Feeds
    1 dB Bandwidth 47MHz
    Antenna Zenith Gain (with 100mm ground plane) 4.5 dBic @ 90°



    Electrical:

    Filtered LNA Frequency Bandwidth 1559 to 1606 MHz
    LNA Gain 50 dB min., across full bandwidth
    Noise Figure ≤2.5dB typ.
    Supply Voltage Range 2.7 to 26 VDC nominal
    Supply Current 30 mA typ.,35mA max



    Mechanicals:

    Size

    66.5 mm dia. x 21 mm H
    Weight 150 g
    Radome EXL9330, Base: Zamak White Metal (M18x1thread)
    Attachment Method Permanent ¾” (19mm) through hole mount
