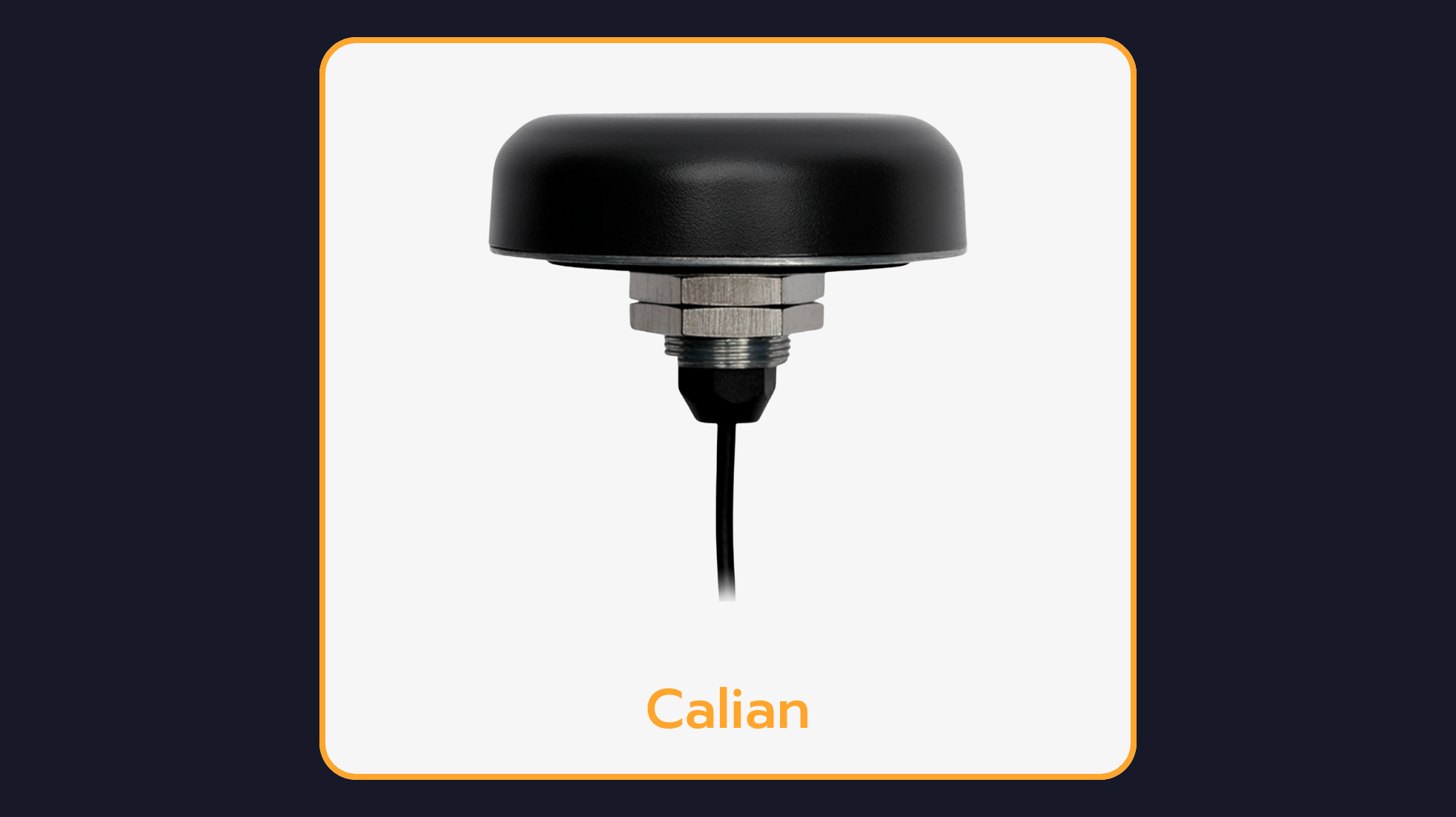

TW5394 Smart GNSS Antenna; High Precision; Precise Heading

Name: TW5394 Smart GNSS Antenna; High Precision; Precise Heading
Brand: Calian
Availability: InStock

Industrial-Grade Antenna for High-Precision Navigation and Automation

Calian TW5394 Smart GNSS Antenna is designed for precise positioning and heading applications, featuring multi-band GNSS (L1/L2) and integrated L-Band for PointPerfect PPP-RTK corrections. It delivers sub-meter accuracy standalone, sub-6 cm accuracy with PPP-RTK, and sub-centimeter accuracy with RTK corrections. Ideal for navigation, automation, and precision mobility, TW5394 is housed in a rugged IP69K-rated enclosure, ensuring reliable performance in challenging environments.

Antenna:

Architecture	Multi-band (L1/L2), Dual Feed
Frequencies	GPS L1C/A L2C, GLO L1OF L2OF, GAL E1B/C E5b, BDS B1l B2l, QZSS L1C/A L2C
SBAS	WAAS, EGNOS, MSAS, GAGAN
Channels	184-channel u-blox F9 engine

Serial Port:

Output	NMEA 0183, UBX Binary, RTCM v3.3, SPARTN v2.0
Baud Rate	Configurable
Update Rate	9 Hz (4); 10 Hz (GPS+GAL+BDS); 20 Hz (GPS+GAL); 20 Hz (GPS+GLO); 16 Hz (GP+BDS); 25 Hz (GPS)

Interface:

33-5394-09-yy-zz	Data, Timepulse: RS-422 levels
33-5394-29-yy-zz	Data: RS-232; Timepulse: RS-422

Mechanical:

Size	66.5 mm dia. x 21 mm H
Weight	135 g
Mounting Method	Industrial grade fixed Mount
Cable Length	5, 15, 25m with RJ45 termination

Horizontal Position Accuracy (4 Constellations):

Standard PVT	1.5m CEP
Standard SBAS	1.0m CEP
Corrected RTK	0.01m + 1ppm CEP
Augmented SPARTN (PPP-RTK)	<0.06m CEP
SPARTN Convergence	<45 sec

Heading:

Dynamic Heading Accuracy	0.3º (30 m/sec)

Improved noise immunity with multi-band u-blox ZED F9P GNSS receiver

PointPerfect PPP-RTK (networked and L-Band)

Improved multi-path rejection with Dual feed Accutenna®

Multi-band GNSS receiver is resilient to ionospheric errors

High reliability timing with expansive constellation array

Moving base RTK Precise Heading base/rover pair

Exceptional position performance standalone without correction services

5V operation

RS-422 differential (or RS-232) signalling
Part Number: 33-5394-09-yy-zz-PC0 (RJ45; Data and Timepulse: RS-422, PC0 = NMEA out, no adaptor cable.)

Part Number: 33-5394-29-yy-zz-PC0 (RJ45; Data: RS-232, Timepulse RS-422, PC0 = NMEA out, no adaptor cable.)

Where:

yy = Radome (00=grey conical, 10-grey low profile, 01-white conical, 11=white low profile)

zz=Cable length in meters. Standard is 5m. (15m and 25m are special order only)

Please refer to Tallysman's Ordering Guide to review available radomes and connectors at: https://www.tallysman.com/resource/tallysman-ordering-guide/
